型號 | 適配功率（KW) | 額定電流(A) | 額定電壓(V) | 工作頻率(HZ) | 試驗電壓（1分鐘） | 絕緣電阻 | 溫度范圍 | 泄漏電流250VAC/50Hz mA | 圖號 | |
線至地L-G | 線至線L-L | 線至地L-G(500VDC) | ||||||||

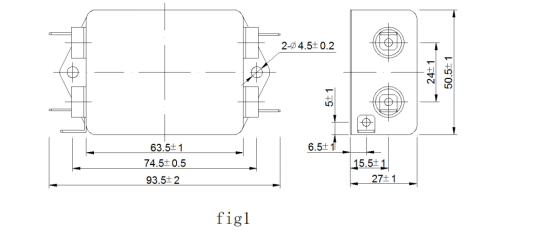

FN211-0003 | 0.75 | 3 | 250VAC | 50/60 | 1500VAC 2250VDC | 1500VDC | >3000M? | -25℃~+85℃ | <0.4 | Fig1 |
FN211-0006 | 1.1 | 6 | Fig1 | |||||||
FN211-0010 | 2.2 | 10 | Fig1 | |||||||

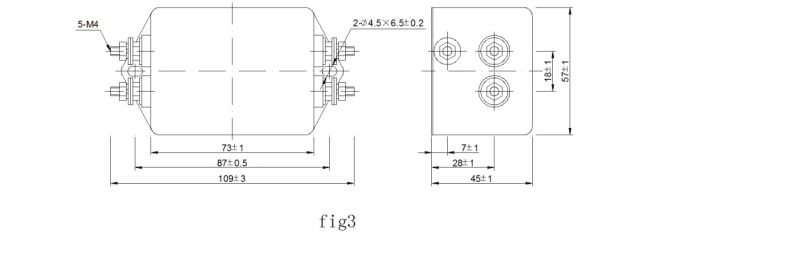

FN211-0020 | 4 | 20 | Fig3 | |||||||

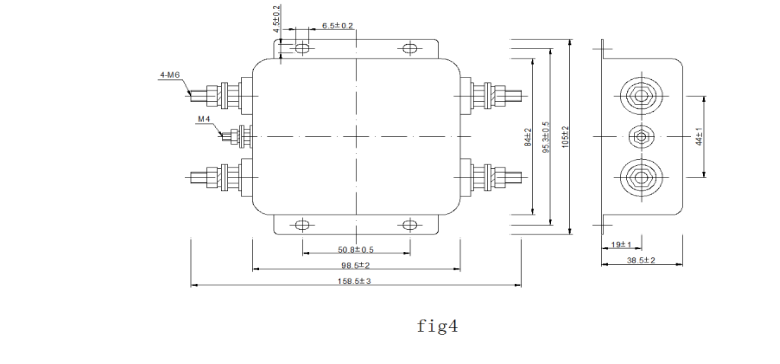

FN211-0030 | 7.5 | 30 | Fig4 | |||||||
FN211-0050 | 11 | 50 | Fig5 | |||||||
